1F20 - PHOTO FLASH RECTIFIERS

Datasheet Summary

Features

Fast switching Diffused junction Low leakage Low forward voltage drop High current capability Easily cleaned with alcohol,Isopropanol and similar solvents.

GALAXY ELECTRICAL

📥 Download Datasheet

Datasheet Details

Part number	1F20
Manufacturer	GALAXY ELECTRICAL
File Size	276.36 KB
Description	PHOTO FLASH RECTIFIERS
Datasheet	1F20 Datasheet
Additional preview pages of the 1F20 datasheet.

📁 Similar Datasheet

1F2 - 1.0 Amp Fast Recovery Plastic Rectifier (Micro Commercial Components)
1F2 - 1A FAST RECOVERY DIODES (Leshan Radio Company)
1F2 - FAST SWITCHING PLASTIC RECTIFIER (Pan Jit International Inc.)
1F2 - FAST SWITCHING PLASTIC RECTIFIER (GOOD-ARK Electronics)
1F2 - 1.0 AMP FAST RECOVERY RECTIFIERS (Formosa MS)
1F2 - FAST RECOVERY RECTIFIER (Rectron Semiconductor)
1F2 - MINIATURE FAST RECOVERY RECTIFIER (Dc Components)
1F2 - Fast Recovery Rectifier (MEI SEMI)
1F2 - FAST RECOVERY RECTIFIERS (Sangdest Microelectronics)
1F2 - Fast Recovery Rectifiers (Eris)

Other Datasheets by GALAXY ELECTRICAL

1F2 - FAST RECOVERY RECTIFIER
1F2G - FAST RECOVERY RECTIFIERS

Full PDF Text Transcription

Click to expand full text

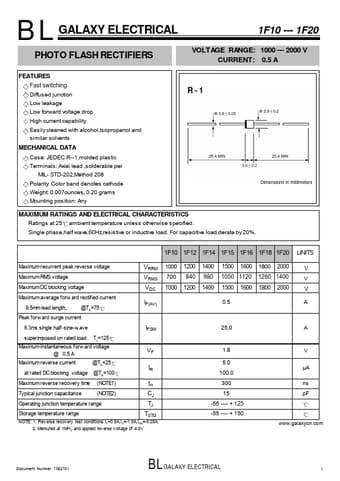

BL GALAXY ELECTRICAL PHOTO FLASH RECTIFIERS 1F10 --- 1F20 VOLTAGE RANGE: 1000 --- 2000 V CURRENT: 0.5 A FEATURES Fast switching Diffused junction Low leakage Low forward voltage drop High current capability Easily cleaned with alcohol,Isopropanol and similar solvents MECHANICAL DATA Case: JEDEC R--1,molded plastic Terminals: Axial lead ,solderable per MIL- STD-202,Method 208 Polarity: Color band denotes cathode Weight: 0.007ounces, 0.20 grams Mounting position: Any R-1 Dimensions in millimeters MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ambient temperature unless otherwise specified. Single phase,half wave,60Hz,resistive or inductive load. For capacitive load,derate by 20%.

Published: Dec 1, 2017 |
