3EZ6.2 - ZENER DIODES

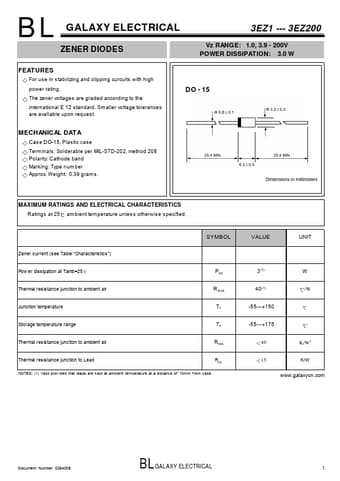

BL GALAXY ELECTRICAL ZENER DIODES 3EZ1 - 3EZ200 Vz RANGE: 1.0, 3.9 - 200V POWER DISSIPATION: 3.0 W FEAT U R ES For us e in s tabilizing and clipping curcuits with high power rating. The zener voltages are graded according to the international E 12 s tandard. Sm aller voltage tolerances are avallable upon reques t. DO - 15 MECHANICAL DATA Cas e:DO-15, Plas tic cas e Term inals : Solderable per MIL-STD-202, method 208 Polarity: Cathode band Marking: Type num ber Approx. Weight: 0.39 g.
