MBR20100PT, MBR2070PT, DUAL SCHOTTKY RECTIFIERS

BL GALAXY ELECTRICAL MBR2070PT *-MBR20100PT DUAL SCHOTTKY RECTIFIERS VOLTAGE RANGE: 70 - 100 V CURRENT: 20 A .

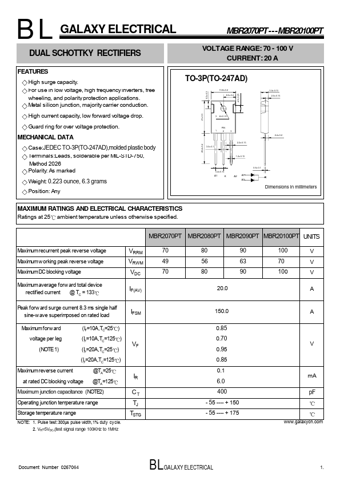

datasheet Preview Page 1 from Datasheet4u.com

MBR2070PT-GALAXYELECTRICAL.pdf

MBR20100PT Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR20100PT, MBR2070PT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR20100PT, MBR2070PT

Manufacturer:

GALAXY ELECTRICAL

File Size:

167.29 KB

Description:

DUAL SCHOTTKY RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: MBR20100PT, MBR2070PT.
Please refer to the document for exact specifications by model.

Applications

* Metal silicon junction, majority carrier conduction. High current capacity, low forward voltage drop. Guard ring for over voltage protection. MECHANICAL DATA Case:JEDEC TO-3P(TO-247AD),molded plastic body Terminals:Leads, solderable per MIL-STD-750, 11 Method 2026 Polarity: As marked Weight: 0.223
