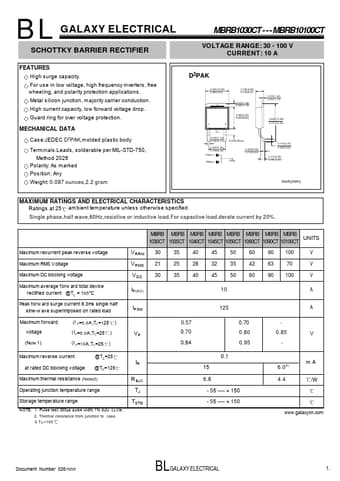

BL GALAXY ELECTRICAL SCHOTTKY BARRIER RECTIFIER FEATURES High s urge capacity. For us e in low voltage, high frequency inverters , free 111wheeling, and polarity protecti...
View more extracted text
ge, high frequency inverters , free 111wheeling, and polarity protection applications . Metal s ilicon junction, m ajority carrier conduction. High current capacity, low forward voltage drop. Guard ring for over voltage protection. MECHANICAL DATA Cas e:JEDEC D2PAK,m olded plas tic body Term inals :Leads, s olderable per MIL-STD-750, 1 1 Method 2026 Polarity: As m arked Pos ition: Any Weight: 0.087 ounces,2.2 gram MBRB1030CT - - - MBRB10100CT VOLTAGE RANGE: 30 - 100 V CURRENT: 10 A D2PAK 0.421(10.69) 0.380(9.65) 3 12 0.190(4.83) 0.172(4.37) 0.055(1.40) 0.045(1.14) 0.364(9.25) 0.325(8.25) 0.055(1.40) 0.045(1.14) 0.625(15.88
