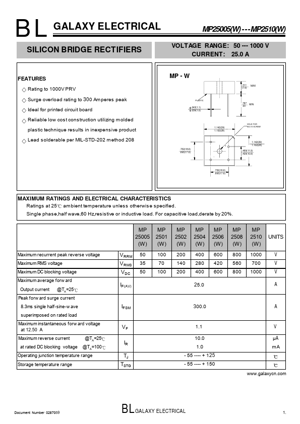

datasheet Preview Page 1 from Datasheet4u.com

MP2502W, MP25005W SILICON BRIDGE RECTIFIERS

BL GALAXY ELECTRICAL SILICON BRIDGE RECTIFIERS MP25005(W) *-MP2510(W) VOLTAGE RANGE: 50 *- 1000 V CURRENT: 25.0 A .

MP25005W-GALAXYELECTRICAL.pdf

MP2502W Datasheet Preview — This datasheet PDF includes multiple part numbers: MP2502W, MP25005W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MP2502W, MP25005W

Manufacturer:

GALAXY ELECTRICAL

File Size:

87.91 KB

Description:

SILICON BRIDGE RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: MP2502W, MP25005W.
Please refer to the document for exact specifications by model.

Features

* Rating to 1000V PRV Surge overload rating to 300 Am peres peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive product Lead solderable per MIL-STD-202 method 208 MP - W PLASTIC .043(1.1) .039(1.0) .732(18.6) .693(17.6) 1.14
