SOD4003, SOD4001 Datasheet - GALAXY ELECTRICAL

SOD4003, SOD4001, PLASTIC SILICON RECTIFIER

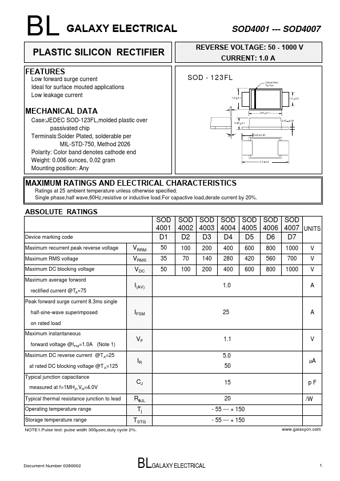

BL GALAXY ELECTRICAL SOD4001 *- SOD4007 PLASTIC SILICON RECTIFIER REVERSE VOLTAGE: 50 - 1000 V CURRENT: 1.0 A .

SOD4001-GALAXYELECTRICAL.pdf

SOD4003 Datasheet Preview — This datasheet PDF includes multiple part numbers: SOD4003, SOD4001. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SOD4003, SOD4001

Manufacturer:

GALAXY ELECTRICAL

File Size:

183.91 KB

Description:

PLASTIC SILICON RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SOD4003, SOD4001.
Please refer to the document for exact specifications by model.

Applications

* Low leakage current MECHANICAL DATA Case:JEDEC SOD-123FL,molded plastic over passivated chip Terminals:Solder Plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Weight: 0.006 ounces, 0.02 gram Mounting position: Any SOD - 123FL Cathode Band Top View 1.8 0.1 5
