CDP1833

CMOS 1024-Word x 8-Bit Static Read-Only Memory

CDP1833 Features

* CDP1833BC is compatible with the CDP1802BC 5 MHz microprocessor

* On-chip address latch

* Interfaces with CDP1800-series microprocessors without additional components

* Optional programmable location within 64K memory space

* Three-state outputs The RCA-CD

CDP1833 Datasheet (257.71 KB)

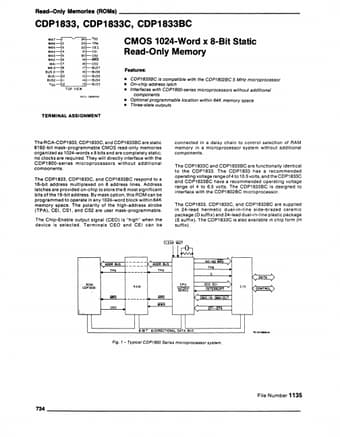

Preview of CDP1833 PDF

Datasheet Details

Part number:

CDP1833

Manufacturer:

GE

File Size:

257.71 KB

Description:

Cmos 1024-word x 8-bit static read-only memory.
Read-Only Memories (ROMs) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ CDP1833, CDP1833C, CDP1833BC MA7 MA6 MAO MA4 MA3 MA2 MAl MAO BUS 0 BUSt BUS2 vSS.
