D45H4, D45H1 PNP POWER TRANSISTORS

D45H4 Description

PNP POWER TRANSISTORS COMPLEMENTARY TO THE D44H SERIES D45H Series -30 - -80 VOLTS -10 AMP, 50 WATTS The General Electric D45H is a power transistor.

D45H4 Features

* PNP complement to D44H NPN
* Low collector saturation voltage
* Excellent linearity
* Fast switching PNP COlL. ECTOR ~'-EQ EMITTER DIMENSIONS ARE IN INCHES AND (MILLIMETERS) / :~:m:~::DIA. TERM. l TERM.2 + .35519.021 .32518.251 +1 1Tioillll!jf-, .500(12.7}MIN.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: D45H4, D45H1. Please refer to the document for exact specifications by model.

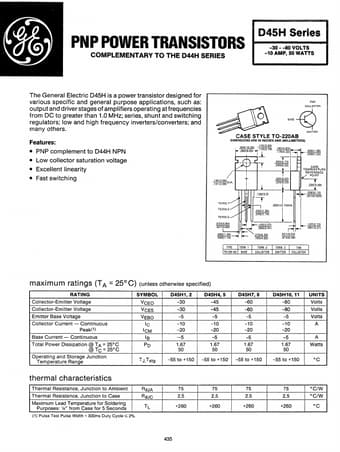

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
D45H4, D45H1
Manufacturer
GE
File Size
232.36 KB
Datasheet
D45H1-GE.pdf
Description
PNP POWER TRANSISTORS
Note
This datasheet PDF includes multiple part numbers: D45H4, D45H1.
Please refer to the document for exact specifications by model.
