PVX006A0X3-SRDZ, PVX006A0X3-SRZ Datasheet - GE

PVX006A0X3-SRDZ, PVX006A0X3-SRZ, 6A Analog PicoDLynx / Non-Isolated DC-DC Power Modules

GE Data Sheet 6A Analog PicoDLynxTM: Non-Isolated DC-DC Power Modules 3Vdc *14.4Vdc input; 0.6Vdc to 5.5Vdc output; 6A Output Current RoHS Co.

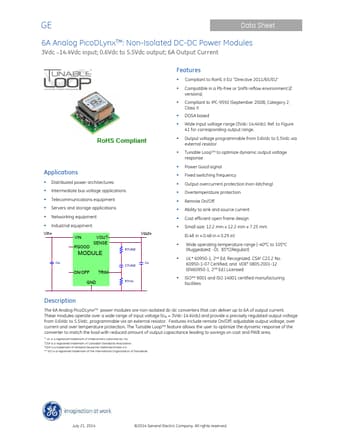

datasheet Preview Page 1 from Datasheet4u.com

PVX006A0X3-SRZ-GE.pdf

PVX006A0X3-SRDZ Datasheet Preview — This datasheet PDF includes multiple part numbers: PVX006A0X3-SRDZ, PVX006A0X3-SRZ. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PVX006A0X3-SRDZ, PVX006A0X3-SRZ

Manufacturer:

File Size:

1.53 MB

Description:

6A Analog PicoDLynx / Non-Isolated DC-DC Power Modules

Note:

This datasheet PDF includes multiple part numbers: PVX006A0X3-SRDZ, PVX006A0X3-SRZ.
Please refer to the document for exact specifications by model.

Features

* Compliant to RoHS II EU “Directive 2011/65/EU”
* Compatible in a Pb-free or SnPb reflow environment (Z versions)
* Compliant to IPC-9592 (September 2008), Category 2, Class II
* DOSA based
* Wide Input voltage range (3Vdc-14.4Vdc). Ref. to Figure 41 for corresponding output ran

Applications

* Distributed power architectures
* Intermediate bus voltage applications
* Telecommunications equipment
* Servers and storage applications
* Networking equipment
* Industrial equipment Vin+ VIN VOUT SENSE PGOOD MODULE Vout+ RTUNE Cin ON/OFF TRIM GND CTUNE Co RTr
