A1714 VHF/UHF Triode

GEC

A1714 Description

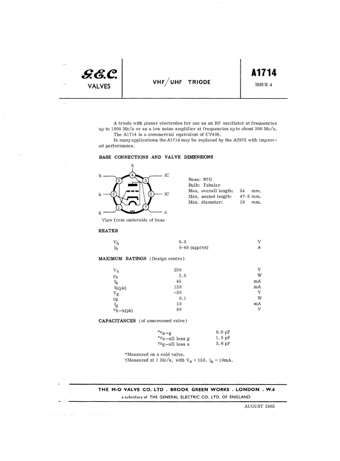

9.&e.VALVES VHF/UHF TRIODE A1714 ISSUE 4 A triode with planar electrodes for use as an RF oscillator at frequencies up to 1000 Mc/s or as a low no.

A1714 Applications

* the A1714 may be replaced by the A2975 with improved performance. BASE CONNECTIONS AND VALVE DIMENSIONS h h IC Base: B7G Bulb: Tubular Max. overall length: k IC Max. seated length: Max. diameter: ga View from underside of base 54 mm. 47
* 5 mm. 19 mm. HEATER 6.3 O
* 49 (approx) V A MAXIMU

📥 Download Datasheet

A1714 Datasheet Preview — Preview of A1714 PDF

Datasheet Details

Part number: A1714
Manufacturer: GEC
File Size: 564.63 KB
Datasheet: A1714-GEC.pdf
Description: VHF/UHF Triode
