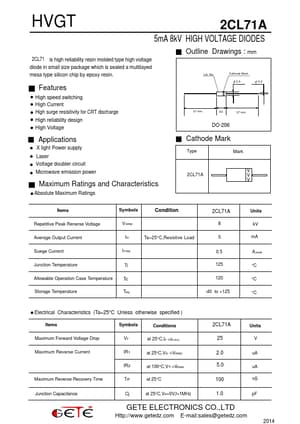

2CL71A
Features
High speed switching High Current High surge resisitivity for CRT discharge High reliability design High Voltage
Applications
X light Power supply Laser Voltage doubler circuit Microwave emission power
Maximum Ratings and Characteristics
Absolute Maximum Ratings
Outline Drawings : mm
Lot No.
Cathode Mark o 2.5 o 0.5
27 min.
6.5 27 min.
DO-206
Cathode Mark
Type
Mark
>>>
Items
Symbols
Condition
Repetitive Peak Renerse Voltage
V RRM
Average Output Current
IO Ta=25°C,Resistive Load
Suege Current
I FSM
Junction Temperature
Tj
Allowable Operation Case Temperature Storage Temperature
Tc Tstg
2CL71A 8 5 0.5
125 120 -40 to +125
Units k V m A A peak °C °C °C
Electrical Characteristics (Ta=25°C Unless otherwise specified )
Items
Symbols
Conditions
Maximu...
