5N60F Datasheet - GFD

600V N-Channel MOSFET

5N60F Features

* 4.5A, 600V, RDS(on) = 2.5Ω @VGS = 10 V

* Low gate charge ( typical 17nC)

* Fast switching

* 100% avalanche tested

* Improved dv/dt capability Ordering Information PART NUMBER PACKAGE BRAND 5N60/5N60F TO-220/220F 0GFD www.goford.cn TEL：0755-86350980 FAX：075

5N60F General Description

This Power MOSFET is produced using Truesemi’s advanced planar stripe, DMOS technology.This latest technology has been especially designed to minimize on-state resistance, have a high rugged avalanche characteristics, such as fast switching time,low on resistance.low gate charge and especially excel.

5N60F Datasheet (1.37 MB)

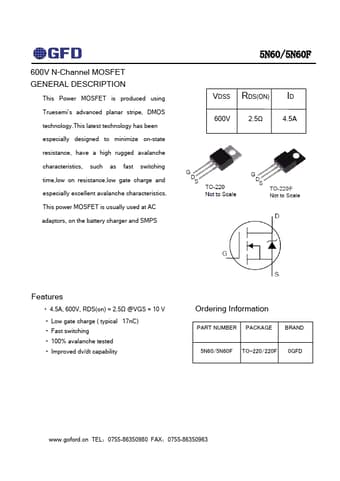

5N60F Datasheet Preview — Preview of 5N60F PDF

Datasheet Details

Part number:

5N60F

Manufacturer:

GFD

File Size:

1.37 MB

Description:

600v n-channel mosfet.
