78L08, 78L03 - voltage regulators

78L08 Datasheet Preview — This datasheet PDF includes multiple part numbers: 78L08, 78L03. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	78L08, 78L03
Manufacturer	GMC
File Size	357.74 KB
Description	voltage regulators
Datasheet	78L03-GMC.pdf
Note	This datasheet PDF includes multiple part numbers: 78L08, 78L03. Please refer to the document for exact specifications by model.

78L08 Product details

Description

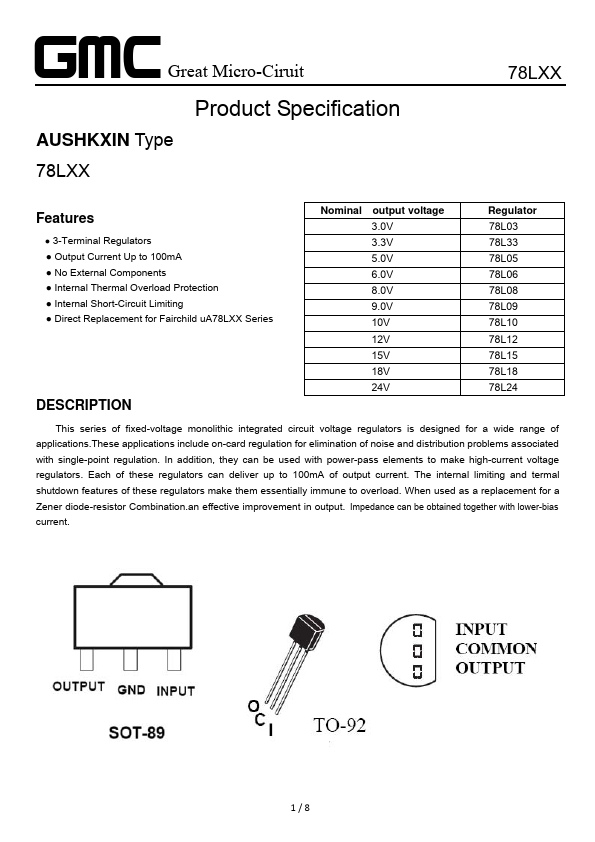

Nominal output voltage 3.0V 3.3V 5.0V 6.0V 8.0V 9.0V 10V 12V 15V 18V 24V Regulator 78L03 78L33 78L05 78L06 78L08 78L09 78L10 78L12 78L15 78L18 78L24 This series of fixed-voltage monolithic integrated circuit voltage regulators is designed for a wide range of applications.These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation.In addition, they can be used with power-pass elements to make high-current voltage reg

Features

3-Terminal Regulators.
Output Current Up to 100mA.
No External Components.
Internal Thermal Overload Protection.
Internal Short-Circuit Limiting.
Direct Replacement for Fairchild uA78LXX Series.
