BAS20W, BAS19W Surface Mount Switching Diode

BAS20W Description

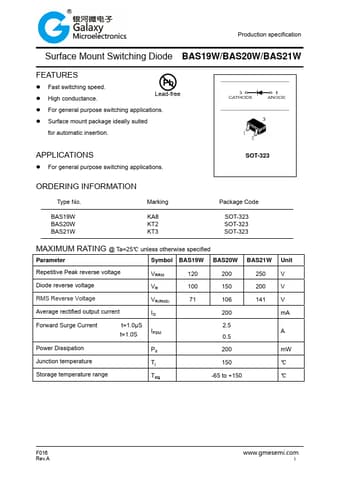

Production specification Surface Mount Switching Diode BAS19W/BAS20W/BAS21W .

BAS20W Features

* Fast switching speed.
* High conductance. Pb Lead-free

BAS20W Applications

* Surface mount package ideally suited for automatic insertion. APPLICATIONS
* For general purpose switching applications. SOT-323 ORDERING INFORMATION Type No. BAS19W BAS20W BAS21W Marking KA8 KT2 KT3 Package Code SOT-323 SOT-323 SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise sp

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAS20W, BAS19W. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS20W, BAS19W
Manufacturer
GME
File Size
186.04 KB
Datasheet
BAS19W-GME.pdf
Description
Surface Mount Switching Diode
Note
This datasheet PDF includes multiple part numbers: BAS20W, BAS19W.
Please refer to the document for exact specifications by model.
