BAT43L - Schottky Barrier Diode

Download the BAT43L datasheet PDF. This datasheet also covers the BAT42L variant, as both devices belong to the same schottky barrier diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low forward voltage.
  • Fast switching time. Pb Lead-free.
  • Surface mount package ideally suited for automatic insertion.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BAT42L-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BAT43 Schottky Diodes General Semiconductor
BAT43 AXIAL LEADED SMALL SIGNAL SCHOTTKY DIODE Sunmate
BAT43 Small-Signal Diode GOOD-ARK
BAT43 SMALL SIGNAL SCHOTTKY BARRIER DIODES DC COMPONENTS
BAT43 SCHOTTKY BARRIER DIODES EIC

Other Datasheets by Galaxy Microelectronics

Part Number Description
BAT43W Schottky Barrier Diode
BAT43WS Schottky Barrier Diode
BAT42L Schottky Barrier Diode
BAT42W Schottky Barrier Diode
BAT42WS Schottky Barrier Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

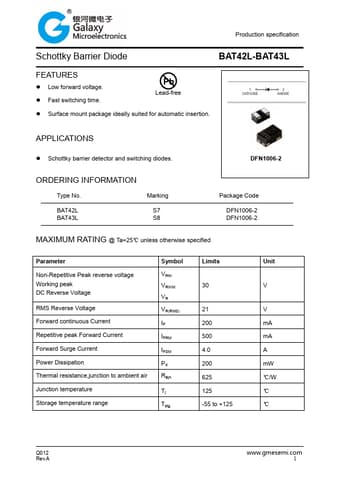

Production specification Schottky Barrier Diode BAT42L-BAT43L FEATURES  Low forward voltage.  Fast switching time. Pb Lead-free  Surface mount package ideally suited for automatic insertion. APPLICATIONS  Schottky barrier detector and switching diodes. DFN1006-2 ORDERING INFORMATION Type No. Marking BAT42L BAT43L S7 S8 Package Code DFN1006-2 DFN1006-2 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Non-Repetitive Peak reverse voltage Working peak DC Reverse Voltage RMS Reverse Voltage Forward continuous Current Repetitive peak Forward Current Forward Surge Current Power Dissipation Thermal resistance,junction to ambient air Junction temperature Storage temperature range Symbol VRM VRWM VR VR(RMS) IF IFRM IFSM Pd RθjA Tj Tstg Limits 30 21 200 500 4.
