BAT54A, BAT54 Surface Mount Schottky Barrier diode

BAT54A Description

Surface Mount Schottky Barrier diode .

BAT54A Features

* Fast switching .
* Low Turn-on voltage. Pb Lead-free
* PN Junction Guard Ring for Transient and ESD Protection.
* Avaiable in Lead Free Version.
* MSL 1 BAT54 BAT54 BAT54C Production specification BAT54/A/C/S BAT54A BAT54A BAT54S ORDERING INFORMATION Type No. Marking

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAT54A, BAT54. Please refer to the document for exact specifications by model.

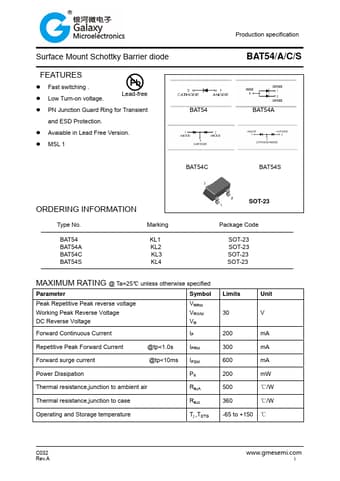

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAT54A, BAT54
Manufacturer
GME
File Size
213.33 KB
Datasheet
BAT54-GME.pdf
Description
Surface Mount Schottky Barrier diode
Note
This datasheet PDF includes multiple part numbers: BAT54A, BAT54.
Please refer to the document for exact specifications by model.
