BC846A - NPN Transistor

This page provides the datasheet information for the BC846A, a member of the BC846 NPN Transistor family.

Datasheet Summary

Features

  • High current gain.
  • Excellent hFE linearity . Pb Lead-free.
  • Low noise between 30Hz and 15kHz.
  • For AF input stages and driver.

📥 Download Datasheet

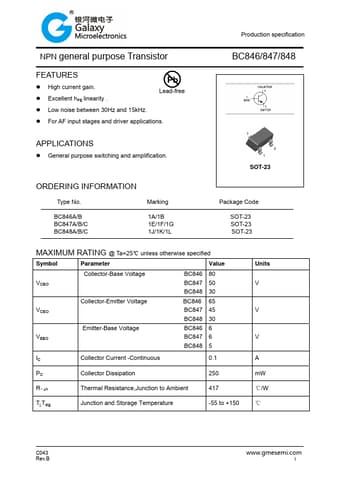

Datasheet preview – BC846A

Datasheet Details

Part number BC846A
Manufacturer GME
File Size 262.51 KB
Description NPN Transistor
Datasheet download datasheet BC846A Datasheet
Additional preview pages of the BC846A datasheet.

📁 Similar Datasheet

  • BC846A - NPN General Purpose Amplifier (Fairchild Semiconductor)
  • BC846A - NPN Transistor (Micro Commercial Components)
  • BC846A - NPN Silicon AF Transistors (Infineon)
  • BC846A - General Purpose Transistors (ON Semiconductor)
  • BC846A - NPN SILICON TRANSISTOR (UTC)
  • BC846A - SMD General Purpose NPN Transistors (Diotec Semiconductor)
  • BC846A - NPN general purpose transistors (Philips)
  • BC846A - NPN Silicon Planar Epitaxial Transistors (RECTRON)
  • BC846A - NPN General Purpose Transistor (Multicomp)
  • BC846A - NPN SMALL SIGNAL TRANSISTOR (DIODES)
Other Datasheets by GME
  • BC846 - NPN Transistor
  • BC846B - NPN Transistor
  • BC846W - NPN Silicon Epitaxial Planar Transistor
  • BC847 - NPN Transistor
  • BC847A - NPN Transistor
  • BC847AT - NPN general purpose Transistor
  • BC847B - NPN Transistor
  • BC847BT - NPN general purpose Transistor

Full PDF Text Transcription

Click to expand full text
Production specification NPN general purpose Transistor FEATURES  High current gain.  Excellent hFE linearity . Pb Lead-free  Low noise between 30Hz and 15kHz.  For AF input stages and driver applications. BC846/847/848 APPLICATIONS  General purpose switching and amplification. ORDERING INFORMATION Type No. Marking BC846A/B BC847A/B/C BC848A/B/C 1A/1B 1E/1F/1G 1J/1K/1L SOT-23 Package Code SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO VEBO Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage BC846 BC847 BC848 BC846 BC847 BC848 BC846 BC847 BC848 80 50 30 65 45 30 6 6 5 IC Collector Current -Continuous 0.
