BL431

Programmable Shunt Regulator

BL431 Features

* Pb

* Programmable output voltage to 36 volts Lead-free

* Low dynamic output impedance 0.20 typical

* Sink current capability of 1.0 to 100mA

* Equivalent full-range temperature coefficient of 50ppm/℃ typical

* Temperature compensated for operation over full rated Operating temper

BL431 Datasheet (312.36 KB)

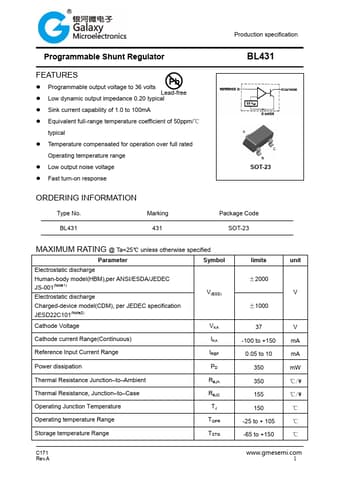

Preview of BL431 PDF

Datasheet Details

Part number:

BL431

Manufacturer:

GME

File Size:

312.36 KB

Description:

Programmable shunt regulator.
