D15PS100L - SCHOTTKY BARRIER RECTIFIERS

GME

📥 Download Datasheet

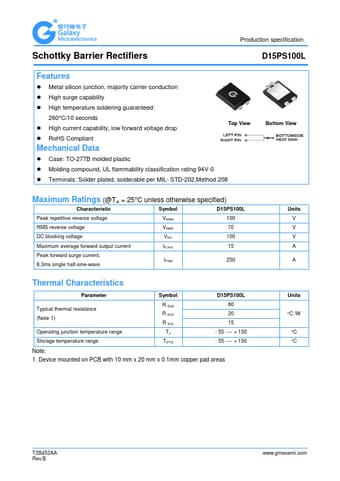

D15PS100L Datasheet Preview — Preview of D15PS100L PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	D15PS100L
Manufacturer	GME
File Size	536.74 KB
Description	SCHOTTKY BARRIER RECTIFIERS
Datasheet	D15PS100L-GME.pdf

D15PS100L Product details

Features

Metal silicon junction, majority carrier conduction.
High surge capability.
High temperature soldering guaranteed: 260°C/10 seconds.
High current capability, low forward voltage drop Top View.
RoHS Compliant Mechanical Data.
Case: TO-277B molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Terminals: Solder plated, solderable per MIL- STD-202,Method 208 Bottom View Maximum Ratings (@TA = 25°C unless otherwise specifie.
