DTC144TE, DTC114TE Digital Transistor

GME

DTC144TE Description

Production specification Digital Transistor .

DTC144TE Features

* Pb
* Epitaxial planar die construction. Lead-free
* Complementary PNP types available(DTC).
* Built-in biasing resistors,R1only.
* Also available in lead free version.

DTC144TE Applications

* The NPN style digital transistor. ORDERING INFORMATION Type No. Marking DTC114TE DTC143TE DTC144TE 04 03 06 DTCXXXTE SOT-523 Package Code SOT-523 SOT-523 SOT-523 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter VCBO Collector-Base Voltage VCEO Collector-Emitter

📥 Download Datasheet

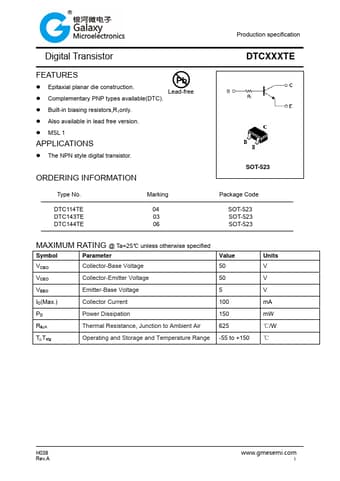

DTC144TE Datasheet Preview — This datasheet PDF includes multiple part numbers: DTC144TE, DTC114TE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: DTC144TE, DTC114TE
Manufacturer: GME
File Size: 187.45 KB
Datasheet: DTC114TE-GME.pdf
Description: Digital Transistor
Note: This datasheet PDF includes multiple part numbers: DTC144TE, DTC114TE.
Please refer to the document for exact specifications by model.
