GBU6M - Silicon Bridge Rectifiers

This page provides the datasheet information for the GBU6M, a member of the GBU6A Silicon Bridge Rectifiers family.

Datasheet Summary

Features

  • z Ideal for printed circuit board z Reliable low cost construction utilizing molded plastic technique z Plastic materrial has U/L flammability classification 94V-O z Mounting position: Any z Glass passivated chip junctions Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol GBU6A GBU6B GBU6D Maximum recurrent peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward Tc=100℃ Output current Peak forward surge current 8.3ms single half.

📥 Download Datasheet

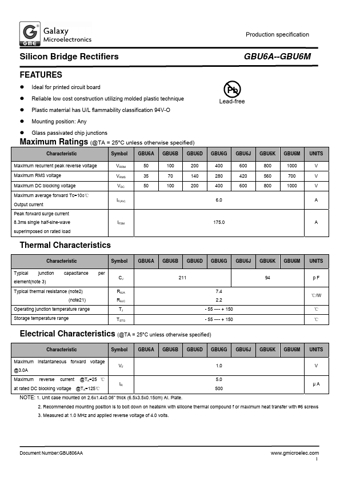

Datasheet preview – GBU6M
