GVS510BF, GVS58BF - Schottky Barrier Rectifiers

GME

📥 Download Datasheet

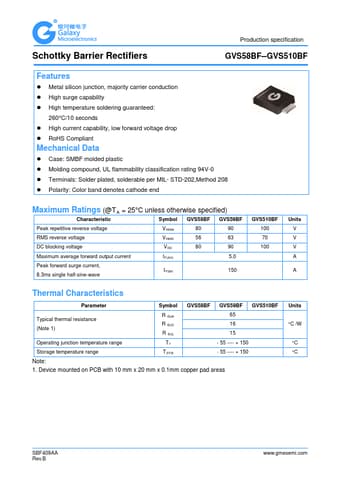

GVS510BF Datasheet Preview — This datasheet PDF includes multiple part numbers: GVS510BF, GVS58BF. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GVS510BF, GVS58BF
Manufacturer	GME
File Size	370.35 KB
Description	Schottky Barrier Rectifiers
Datasheet	GVS58BF-GME.pdf
Note	This datasheet PDF includes multiple part numbers: GVS510BF, GVS58BF. Please refer to the document for exact specifications by model.

GVS510BF Product details

Features

Metal silicon junction, majority carrier conduction.
High surge capability.
High temperature soldering guaranteed: 260°C/10 seconds.
High current capability, low forward voltage drop.
RoHS Compliant Mechanical Data.
Case: SMBF molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Terminals: Solder plated, solderable per MIL- STD-202,Method 208.
Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless other.
