MB6F SILICON BRIDGE RECTIFIERS

MB6F Description

Production specification SILICON BRIDGE RECTIFIERS MB4F *MB10F .

MB6F Features

* z Glass：passivated chip junctions z High surge overload rating: 30A peak Pb Lead-free z Saves space on printed circuit boards z High temperature soldering guaranteed: 260°C/10 seconds at 5 lbs. (2.3kg) tension MECHANICAL DATA z Case: Molded plastic body over passivated junctions z Terminals: P

📥 Download Datasheet

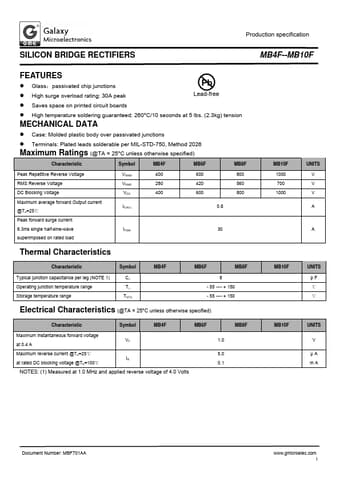

Preview of MB6F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MB6F
Manufacturer
GME
File Size
239.86 KB
Datasheet
MB6F-GME.pdf
Description
SILICON BRIDGE RECTIFIERS
