MBRD845, MBRD830 Dual Schottky Rectifiers

GME

Description

Production specification Dual Schottky Rectifiers MBRD830-MBRD8100 .

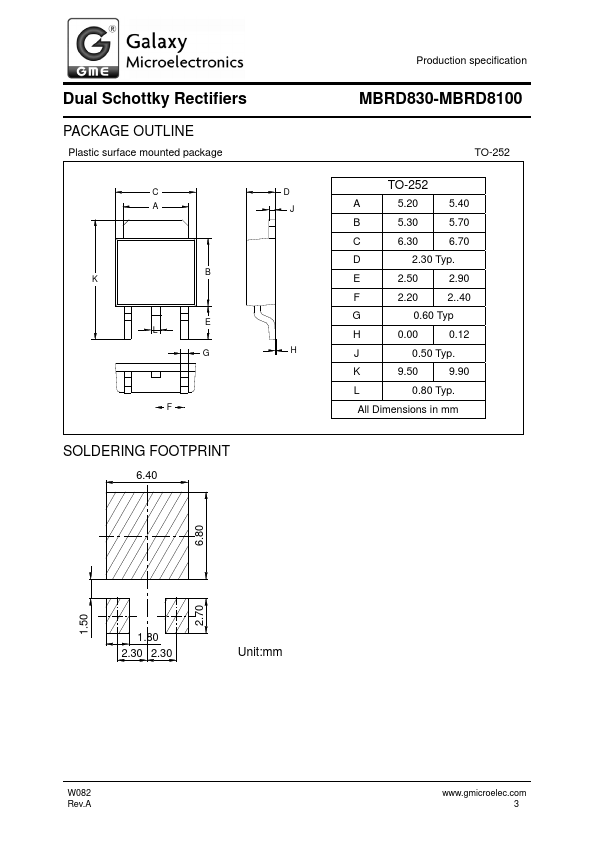

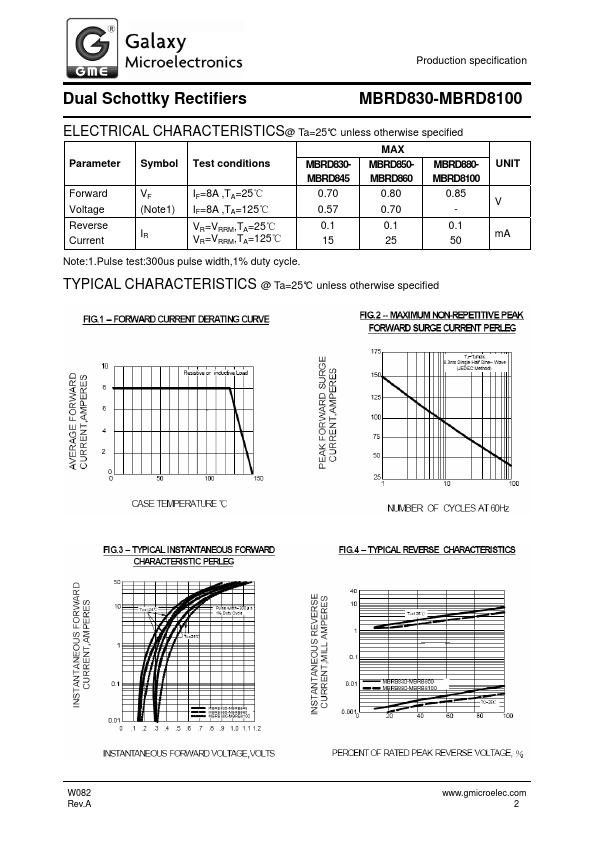

📥 Download Datasheet

MBRD845 Datasheet Preview — This datasheet PDF includes multiple part numbers: MBRD845, MBRD830. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MBRD845, MBRD830
Manufacturer: GME
File Size: 182.62 KB
Datasheet: MBRD830-GME.pdf
Description: Dual Schottky Rectifiers
Note: This datasheet PDF includes multiple part numbers: MBRD845, MBRD830.
Please refer to the document for exact specifications by model.

Applications

* z Metal silicon junction,majority carrier conduction. z High current capacity,low forward voltage drop. z Guard ring for over voltage protection. TO-252 MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Parameter MBRD 830 MBRD 835 MBRD 840 MBRD 845 MBRD
