MMBT5401 - NPN General Purpose Transistor

MMBT5401 Description

Production specification PNP General Purpose Transistor .

MMBT5401 Features

* Epitaxial planar die construction.
* Complementary NPN type available (MMBT5551).

MMBT5401 Applications

* Ideal for medium power amplification and switching ORDERING INFORMATION Type No. Marking MMBT5401 2L SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO collector-base voltage -160 VCEO collector-emitter voltage -150 VEBO e

📥 Download Datasheet

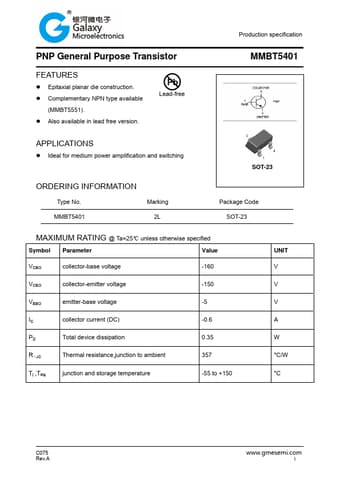

Preview of MMBT5401 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMBT5401
Manufacturer
GME
File Size
218.31 KB
Datasheet
MMBT5401-GME.pdf
Description
NPN General Purpose Transistor
