S8550 Silicon NPN Transistor

S8550 Description

Silicon Epitaxial Planar Transistor .

S8550 Features

* High Collector Current. (IC= -500mA).
* Complementary To S8050.

S8550 Applications

* High Collector Current. ORDERING INFORMATION Type No. Marking S8550 2TY Production specification S8550 SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage -40 VCEO Collector-Emitter Voltage -25 VEBO

📥 Download Datasheet

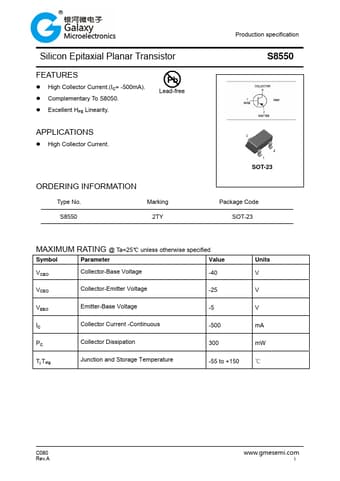

Preview of S8550 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S8550
Manufacturer
GME
File Size
327.39 KB
Datasheet
S8550-GME.pdf
Description
Silicon NPN Transistor
