SMF15CA, SMF5V0CA Transient Voltage Suppressor

SMF15CA Description

Production specification Transient Voltage Suppressor SMF5V0CA *SMF170CA .

SMF15CA Applications

* Low profile package
* Low incremental surge resistance, excellent clamping capability
* 200W peak pulse power capability with a
* 10/1000μs wave from, repetition rate (duty cycle):0.01%
* High temperature soldering guaranteed: 260℃/10 seconds, at terminals Mechanical Data

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMF15CA, SMF5V0CA. Please refer to the document for exact specifications by model.

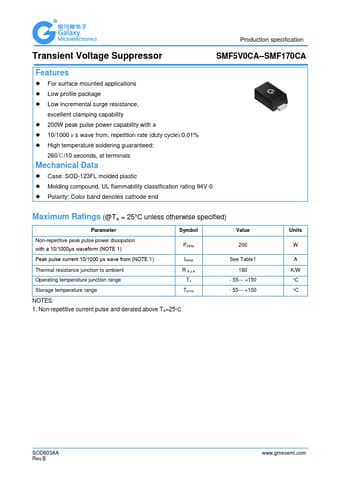

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMF15CA, SMF5V0CA
Manufacturer
GME
File Size
471.70 KB
Datasheet
SMF5V0CA-GME.pdf
Description
Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: SMF15CA, SMF5V0CA.
Please refer to the document for exact specifications by model.
