SS2150BF - Schottky Barrier Rectifiers

Datasheet Summary

Features

  • Metal silicon junction, majority carrier conduction.
  • High surge capability.
  • High temperature soldering guaranteed: 260°C/10 seconds.
  • High current capability, low forward voltage drop.
  • RoHS Compliant Mechanical Data.
  • Case: SMBF molded plastic.
  • Molding compound, UL flammability classification rating 94V-0.
  • Terminals: Solder plated, solderable per MIL- STD-202,Method 208.
  • Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless other.

📥 Download Datasheet

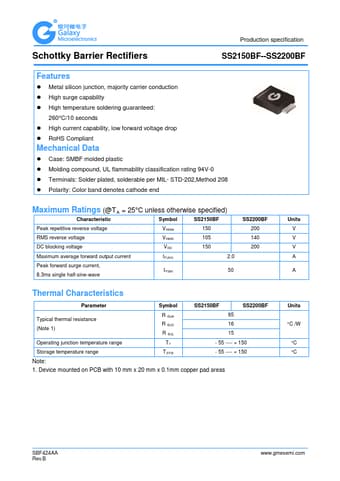

Datasheet preview – SS2150BF

Datasheet Details

Part number SS2150BF
Manufacturer GME
File Size 371.55 KB
Description Schottky Barrier Rectifiers
Datasheet download datasheet SS2150BF Datasheet
Additional preview pages of the SS2150BF datasheet.

📁 Similar Datasheet

  • SS2150-L - Schottky Rectifier (MCC)
  • SS2150F - Schottky Diodes (Kexin)
  • SS215 - SCHOTTKY BARRIER RECTIFIER (KD)
  • SS215 - Schottky Barrier Surface Mount Rectifier (Taiwan Semiconductor)
  • SS215 - SCHOTTKY BARRIER RECTIFIERS (Silicon Standard)
  • SS215 - SCHOTTKY BARRIER RECTIFIERS (HY)
  • SS215A - 2.0 Amps. Surface Mount Schottky Barrier Rectifiers (JGD)
  • SS215A - Surface Mount Schottky Barrier Rectifiers (MIC)
  • SS215A - 2A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (Frontier Electronics)
  • SS215A - SCHOTTKY RECTIFIER (Sangdest Microelectronics)
Other Datasheets by GME
  • SS2150 - SCHOTTKY BARRIER RECTIFIERS
  • SS2150A - Schottky Barrier Rectifiers
  • SS2150F - Schottky Barrier Rectifiers
  • SS2150FA - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
  • SS210 - SCHOTTKY BARRIER RECTIFIERS
  • SS210BF - Schottky Barrier Rectifiers
  • SS210F - Schottky Barrier Rectifiers
  • SS210FA - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription

Click to expand full text
Schottky Barrier Rectifiers Production specification SS2150BF--SS2200BF Features  Metal silicon junction, majority carrier conduction  High surge capability  High temperature soldering guaranteed: 260°C/10 seconds  High current capability, low forward voltage drop  RoHS Compliant Mechanical Data  Case: SMBF molded plastic  Molding compound, UL flammability classification rating 94V-0  Terminals: Solder plated, solderable per MIL- STD-202,Method 208  Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol SS2150BF Peak repetitive reverse voltage V RRM 150 RMS reverse voltage V RMS 105 DC blocking voltage VDC 150 Maximum average forward output current I F(AV) 2.0 Peak forward surge current, 8.
