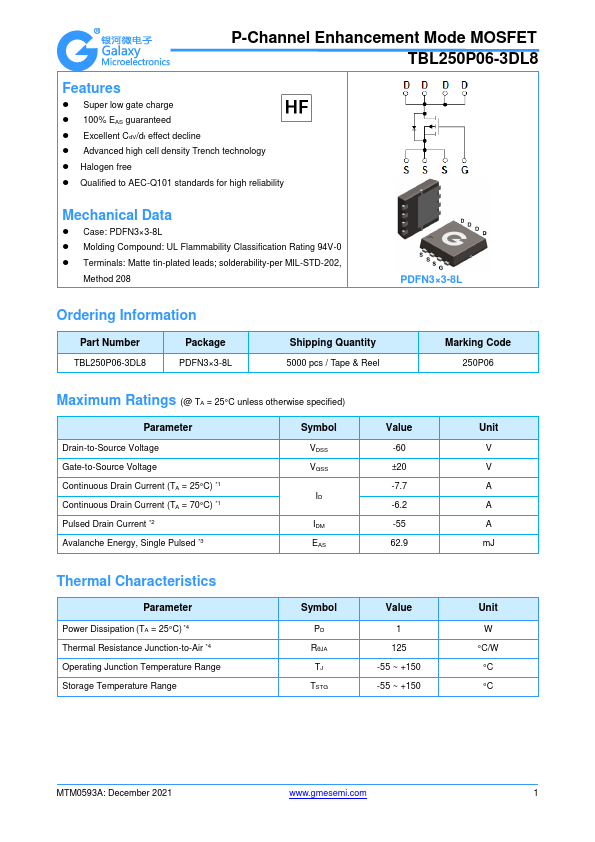

TBL250P06-3DL8
Features
- Super low gate charge
- 100% EAS guaranteed
- Excellent Cd V/dt effect decline
- Advanced high cell density Trench technology
- Halogen free
- Qualified to AEC-Q101 standards for high reliability
Mechanical Data
- Case: PDFN3×3-8L
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202,
Method 208
PDFN3×3-8L
Ordering Information
Part Number TBL250P06-3DL8
Package PDFN3×3-8L
Shipping Quantity 5000 pcs / Tape & Reel
Marking Code 250P06
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TA = 25°C)
- 1 Continuous Drain Current (TA = 70°C)
- 1 Pulsed Drain Current
- 2 Avalanche Energy, Single Pulsed
- 3
Symbol VDSS VGSS
IDM EAS
Value -60 ±20 -7.7 -6.2 -55 62.9
Unit V V A A A m J
Thermal Characteristics
Parameter Power Dissipation (TA = 25°C)
- 4 Thermal Resistance Junction-to-Air
- 4 Operating Junction...
