W005 Silicon Bridge Rectifiers

W005 Description

Production specification Silicon Bridge Rectifiers .

W005 Features

* z Rating to 1000V PRV z Ideal for printed circuit board z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Mounting Position: Any z Glass passivated chip junctions W005
* W10 Pb Lead-free Maximum Ratings (@TA = 25°C unless otherwise specified

📥 Download Datasheet

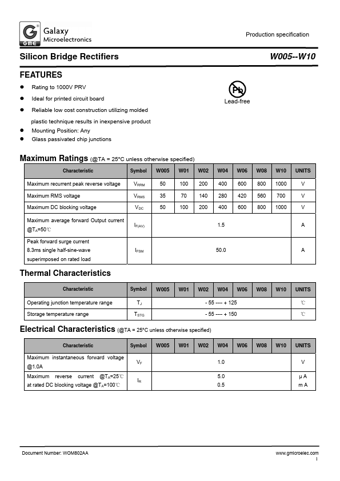

Preview of W005 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
W005
Manufacturer
GME
File Size
128.38 KB
Datasheet
W005-GME.pdf
Description
Silicon Bridge Rectifiers
