W04M Silicon Bridge Rectifiers

W04M Description

Production specification Silicon Bridge Rectifiers W005M *W10M .

W04M Features

* z Rating to 1000V PRV z Ideal for printed circuit board z Surge overload rating to 50 Amperes peak z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Mounting Position: Any z Glass passivated chip junctions Pb Lead-free Maximum Ratings (@TA = 25°C

📥 Download Datasheet

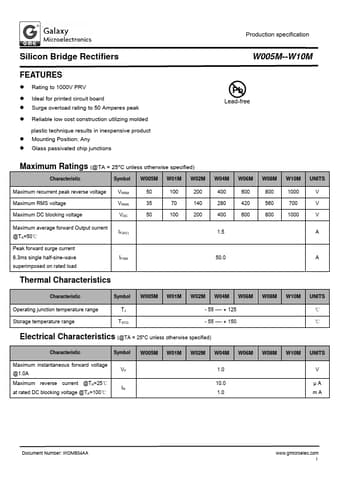

Preview of W04M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
W04M
Manufacturer
GME
File Size
148.14 KB
Datasheet
W04M-GME.pdf
Description
Silicon Bridge Rectifiers
