GH266A

HIGH VOLTAGE HALL DRIVER

GH266A Features

* On Chip Hall Effect Sensor

* 3.5~28V Power Supply Voltage

* Drivers Allow 400mA Without Overheating

* Built-in Zener Diodes Protection for Output Driver

* Embedded Over-Temperature Protection

* Precise Magnetic Switching Thresholds

* Applications

GH266A General Description

The GH266A is an integrated Hall sensor with output driver designed for electronic commutation of brush-less DC motor applications. The device includes an on-chip Hall sensor for magnetic sensing, an amplifier that amplifies the Hall voltage, a wave shaping circuit to provide switching hysteresis fo.

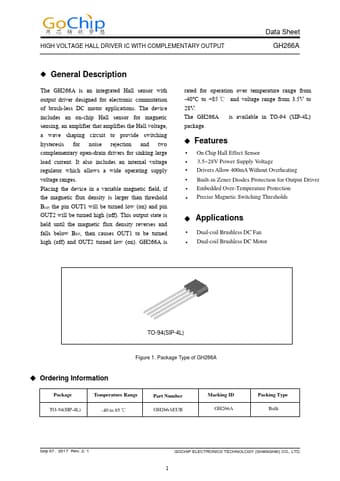

GH266A Datasheet (2.88 MB)

Preview of GH266A PDF

Datasheet Details

Part number:

GH266A

Manufacturer:

GOCHIP

File Size:

2.88 MB

Description:

High voltage hall driver.
