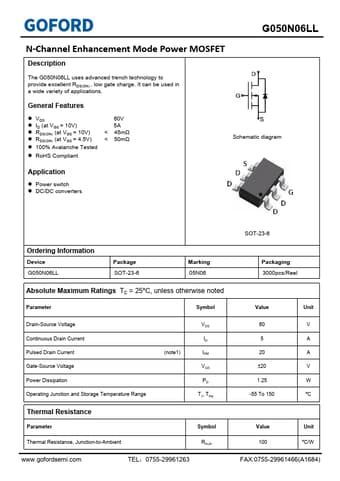

05N06 Datasheet, Mosfet, GOFORD

05N06 Features

• Mosfet l VDS l ID (at VGS = 10V) l RDS(ON) (at VGS = 10V) l RDS(ON) (at VGS = 4.5V) 60V 5A < 45mΩ < 50mΩ l 100% Avalanche Tested l RoHS Compliant Schematic diagram Application l Power sw

PDF File Details

Part number:

05N06

Manufacturer:

GOFORD

File Size:

759.76kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The G050N06LL uses advanced trench technology to provide excellent RDS(ON) , low gate charge. It can be used in a wide variety of ap

05N06 Application

• Applications General Features l VDS l ID (at VGS = 10V) l RDS(ON) (at VGS = 10V) l RDS(ON) (at VGS = 4.5V) 60V 5A < 45mΩ < 50mΩ l 100% Avalanch
