HER3004 - HIGH EFFICIENCY RECTIFIER

Product Overview

GOOD-ARK Electronics

Part number	HER3004
Manufacturer	GOOD-ARK Electronics
File Size	151.73 KB
Description	HIGH EFFICIENCY RECTIFIER
Datasheet	HER3004 Datasheet
Note	This datasheet PDF includes multiple part numbers: HER3004, HER3004_GOOD. Please refer to the document for exact specifications by model.

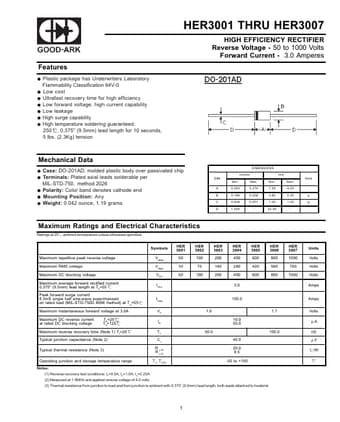

Additional preview pages of the HER3004 datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Low cost Ultrafast recovery time for high efficiency Low forward voltage, high current capability Low leakage High surge capability High temperature soldering guaranteed: 250 , 0.375 (9.5mm) lead length for 10 seconds, 5 lbs. (2.3Kg) tension Mechanical Data Case: DO-201AD, molded plastic body over passivated chip Terminals: Plated axial leads solderable per MIL-STD-750, method 2026 Polarity: Color band denotes cathod.
