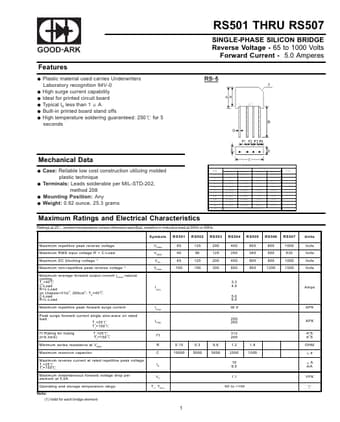

RS501 THRU RS507
SINGLE-PHASE SILICON BRIDGE Reverse Voltage - 65 to 1000 Volts Forward Current - 5.0 Amperes
Features
Plastic material used carries Underwriters Laboratory recognition 94V-0 High surge current capability Ideal for printed circuit board Typical IR less than 1 A Built-in printed board stand offs High temperature soldering guaranteed: 250 seconds
for 5
Mechanical Data
D IM E N S IO N S
Case: Reliable low cost construction utilizing molded plastic technique Terminals: Leads solderable per MIL-STD-202, method 208 Mounting Position: Any Weight: 0.92 ounce, 25.3 grams
D IM A B C D E F 1 F 2 F 3 F 4 G H J
in c h e s M in . 0 .8 2 5 1 .0 1 .5 5 0 0 .1 8 0 0 .2 4 5 0 .3 8 5 0 .2 8 5 0 .2 8 5 0 .3 4 5 0 .0 3 8 0 .7 9 5 M a x . 0 .8 5 5 1 .5 8 0 0 .1 9 5 0 .2 6 5 0 .4 0 0 0 .
