SR26, SR26_GOOD SURFACE MOUNT FAST SWITCHING RECTIFIER

SR26 Description

SR26 THRU SR29 SURFACE MOUNT FAST SWITCHING RECTIFIER Reverse Voltage - 100 to 800 Volts Forward Current - 2.0 Amperes .

SR26 Applications

* Low profile package Built-in strain relief Easy pick and place Fast recovery times for high efficiency Plastic package has Underwriters Laboratory Flammability Classification 94V-0 High temperature soldering: 260 /10 seconds at terminals Mechanical Data Case: SMA molded plastic Terminals: Solder pl

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR26, SR26_GOOD. Please refer to the document for exact specifications by model.

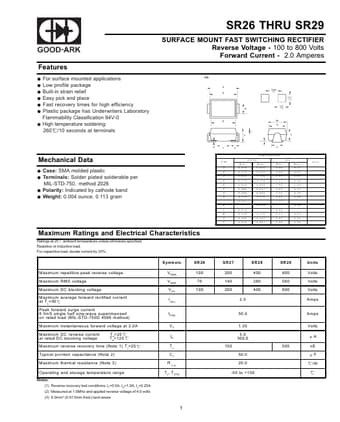

datasheet Preview Page 2

Datasheet Details

Part number
SR26, SR26_GOOD
Manufacturer
GOOD-ARK Electronics
File Size
185.57 KB
Datasheet
SR26_GOOD-ARKElectronics.pdf
Description
SURFACE MOUNT FAST SWITCHING RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SR26, SR26_GOOD.
Please refer to the document for exact specifications by model.
