1.5SMC13CA - Surface Mount Transient Voltage Suppressors

Download the 1.5SMC13CA datasheet PDF. This datasheet also covers the 1.5SMC6.8A-GOOD variant, as both devices belong to the same surface mount transient voltage suppressors family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1.5SMC6.8A-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1.5SMC13CA
Manufacturer GOOD-ARK
File Size 688.49 KB
Description Surface Mount Transient Voltage Suppressors
Datasheet download datasheet 1.5SMC13CA Datasheet

Overview

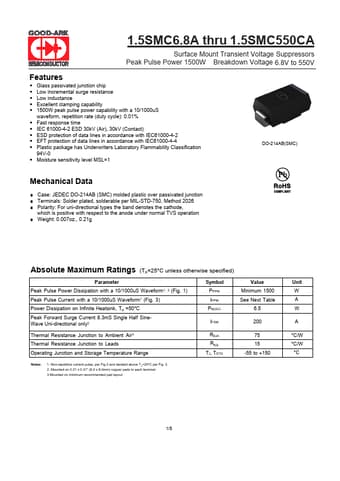

1.5SMC6.8A thru 1.5SMC550CA Surface Mount Transient Voltage Suppressors Peak Pulse Power 1500W Breakdown Voltage 6.

Key Features

  • Glass passivated junction chip.
  • Low incremental surge resistance.
  • Low inductance.
  • Excellent clamping capability.
  • 1500W peak pulse power capability with a 10/1000uS waveform, repetition rate (duty cycle): 0.01%.
  • Fast response time.
  • IEC 61000-4-2 ESD 30kV (Air), 30kV (Contact).
  • ESD protection of data lines in accordance with IEC61000-4-2.
  • EFT protection of data lines in accordance with IEC61000-4-4.
  • Plastic package has Underwriters Laboratory Flam.
