1N4934, 1N4933 1A Fast Recovery Rectifiers

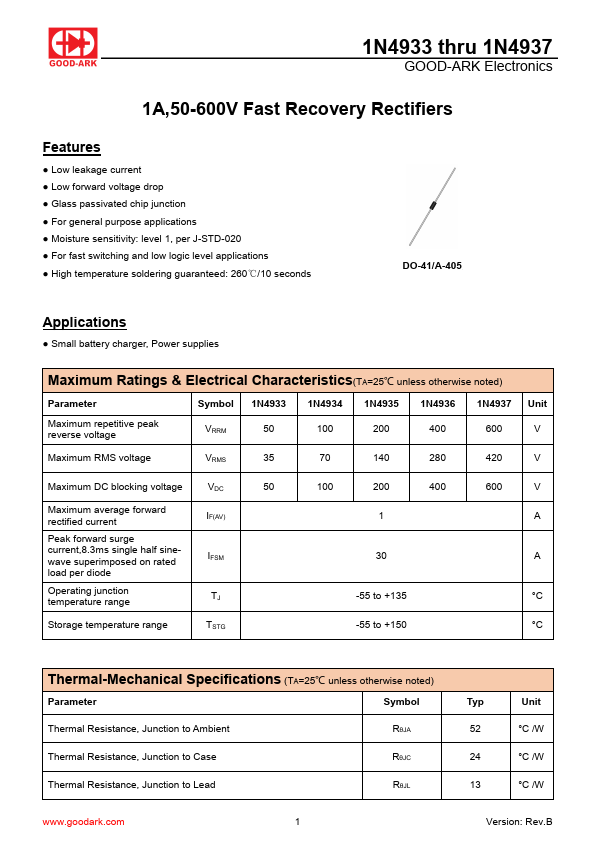

📥 Download Datasheet Datasheet Preview Page 1

Description

1N4933 thru 1N4937 GOOD-ARK Electronics 1A,50-600V Fast Recovery Rectifiers .
of changes Released Datasheet Modify document format www.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4934, 1N4933. Please refer to the document for exact specifications by model.

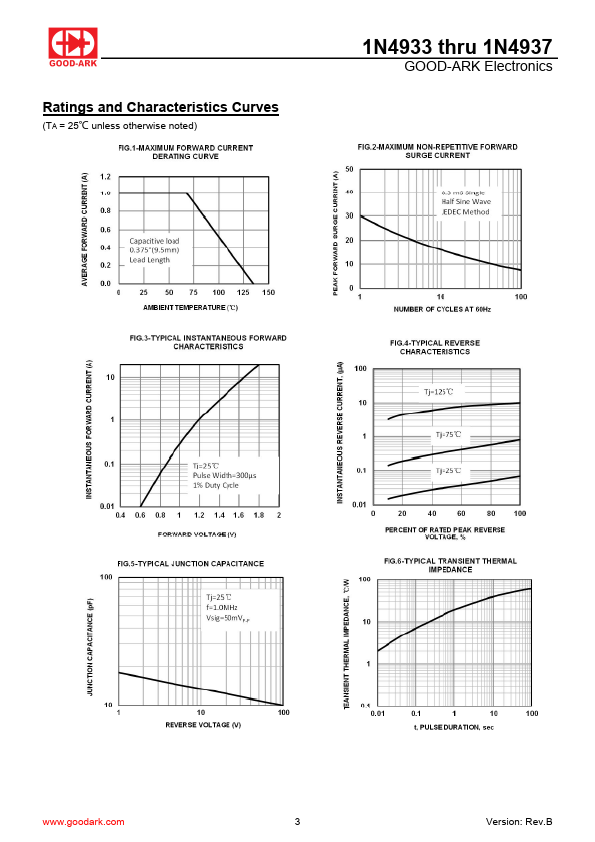

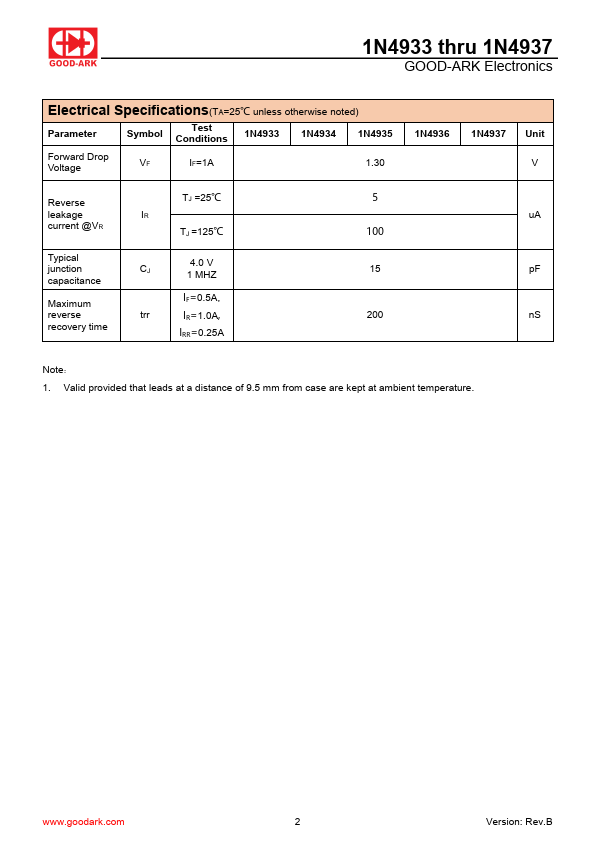

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
1N4934, 1N4933
Manufacturer
GOOD-ARK
File Size
570.40 KB
Datasheet
1N4933-GOODARK.pdf
Description
1A Fast Recovery Rectifiers
Note
This datasheet PDF includes multiple part numbers: 1N4934, 1N4933.
Please refer to the document for exact specifications by model.

Features

* Low leakage current
* Low forward voltage drop
* Glass passivated chip junction

Applications

* Moisture sensitivity: level 1, per J-STD-020
* For fast switching and low logic level applications
* High temperature soldering guaranteed: 260℃/10 seconds DO-41/A-405 Applications
* Small battery charger, Power supplies Maximum Ratings & Electrical Characteristics(TA=25℃ unless
