6A10G, 6A1G 6A Standard Rectifiers

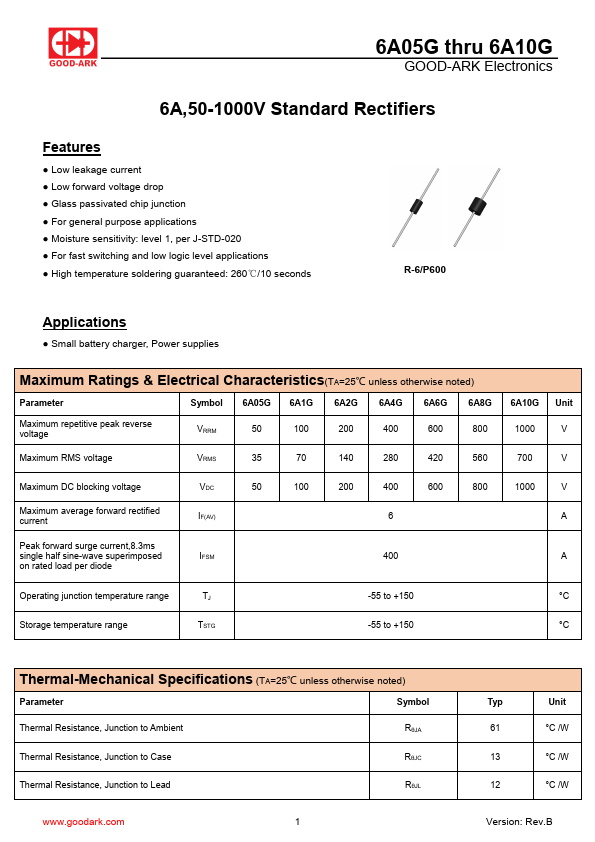

📥 Download Datasheet Datasheet Preview Page 1

Description

6A05G thru 6A10G GOOD-ARK Electronics 6A,50-1000V Standard Rectifiers .
of changes Released Datasheet Modify document format www.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 6A10G, 6A1G. Please refer to the document for exact specifications by model.

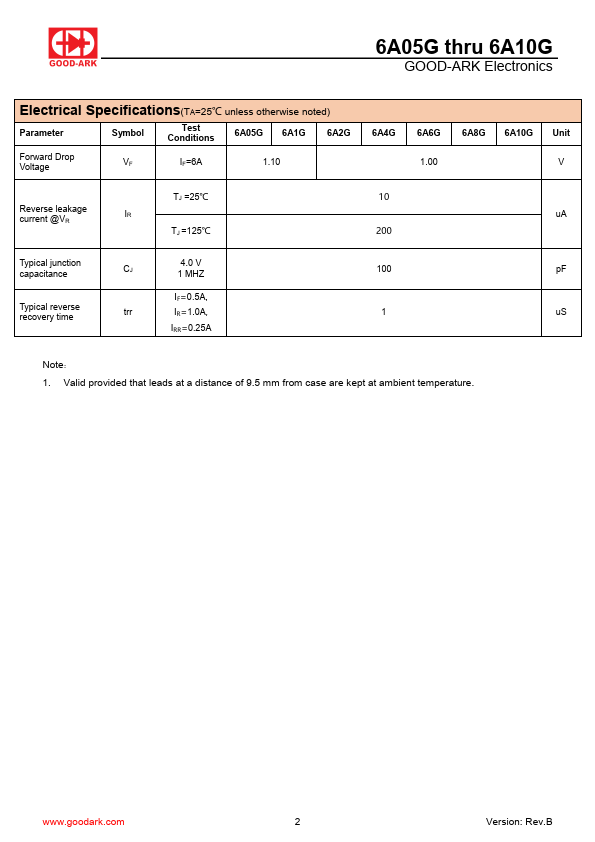

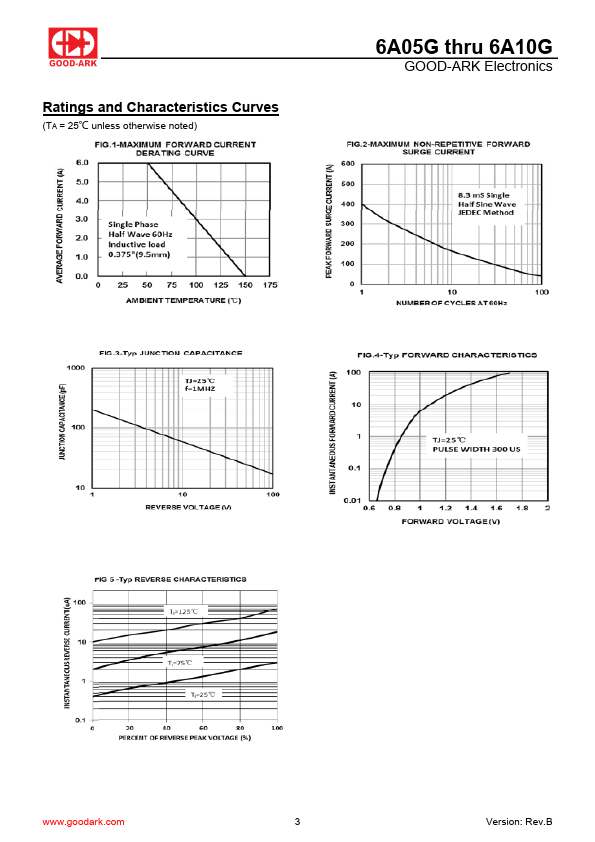

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
6A10G, 6A1G
Manufacturer
GOOD-ARK
File Size
521.40 KB
Datasheet
6A1G-GOODARK.pdf
Description
6A Standard Rectifiers
Note
This datasheet PDF includes multiple part numbers: 6A10G, 6A1G.
Please refer to the document for exact specifications by model.

Features

* Low leakage current
* Low forward voltage drop
* Glass passivated chip junction

Applications

* Moisture sensitivity: level 1, per J-STD-020
* For fast switching and low logic level applications
* High temperature soldering guaranteed: 260℃/10 seconds R-6/P600 Applications
* Small battery charger, Power supplies Maximum Ratings & Electrical Characteristics(TA=25℃ unless ot
