6A2 6A Standard Rectifiers

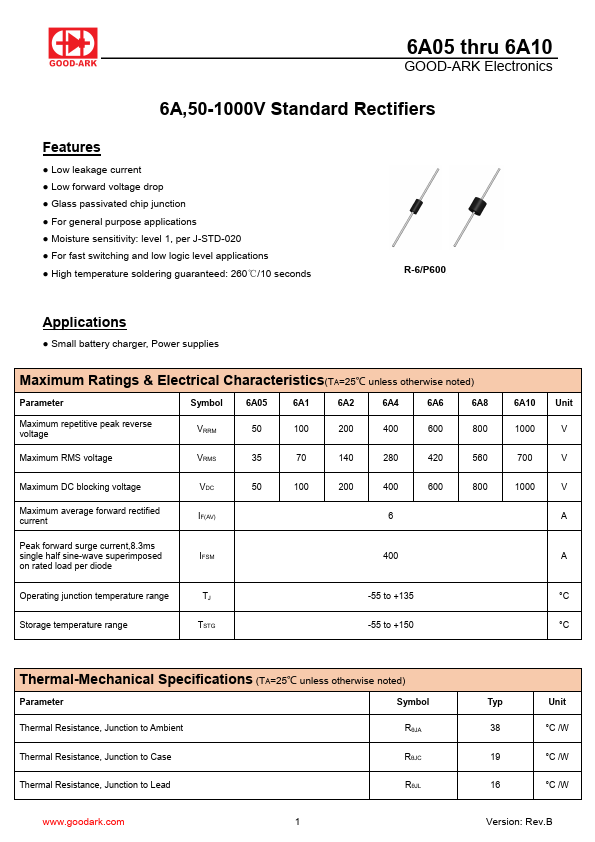

📥 Download Datasheet  Datasheet Preview Page 1

Description

6A05 thru 6A10 GOOD-ARK Electronics 6A,50-1000V Standard Rectifiers .
of changes Released Datasheet Modify document format www.

📥 Download Datasheet

Preview of 6A2 PDF

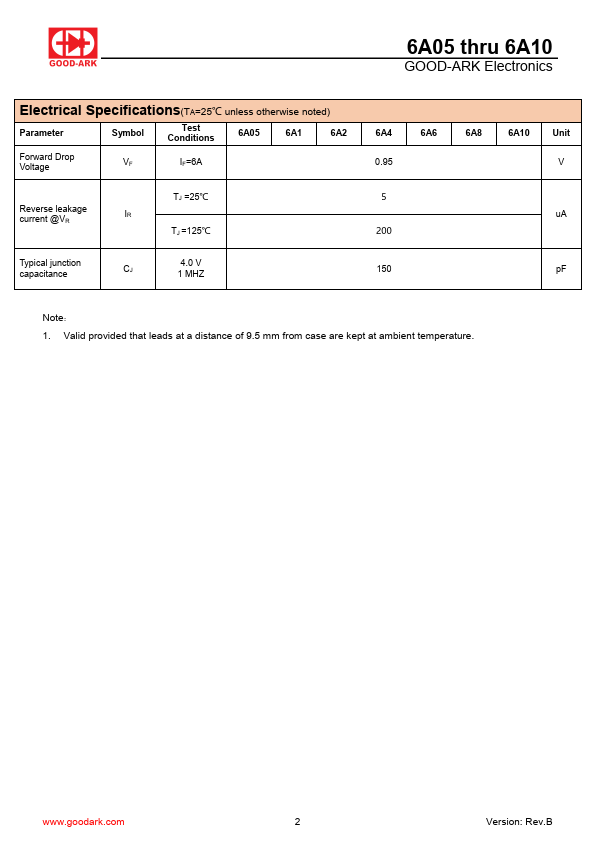

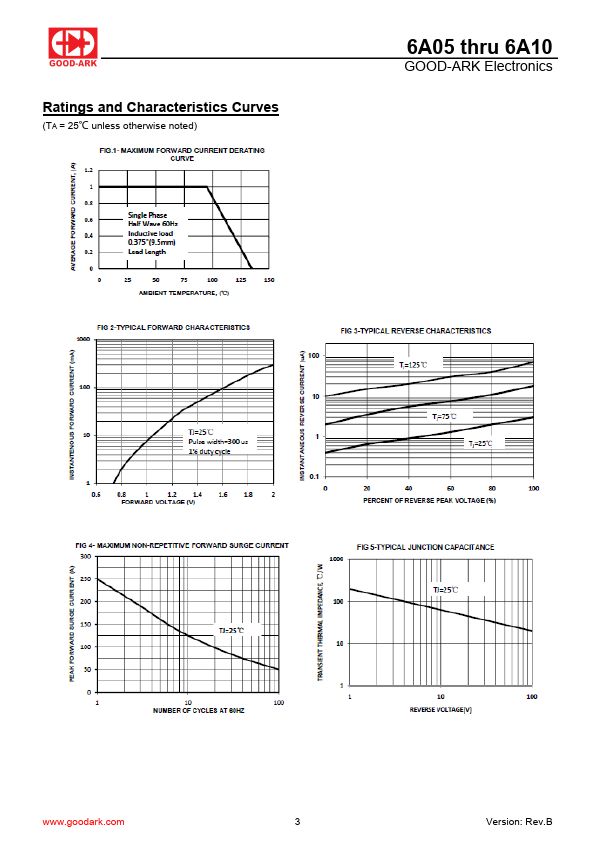

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
6A2
Manufacturer
GOOD-ARK
File Size
517.93 KB
Datasheet
6A2-GOODARK.pdf
Description
6A Standard Rectifiers

Features

* Low leakage current
* Low forward voltage drop
* Glass passivated chip junction

Applications

* Moisture sensitivity: level 1, per J-STD-020
* For fast switching and low logic level applications
* High temperature soldering guaranteed: 260℃/10 seconds R-6/P600 Applications
* Small battery charger, Power supplies Maximum Ratings & Electrical Characteristics(TA=25℃ unless ot
