ASGP6A, ASGP1A 1A Standard Rectifiers

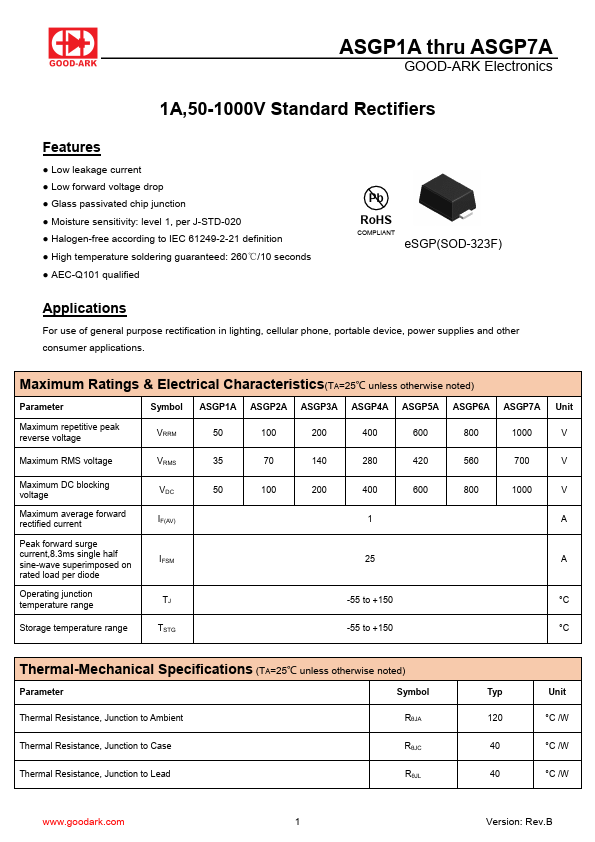

📥 Download Datasheet  Datasheet Preview Page 1

Description

ASGP1A thru ASGP7A GOOD-ARK Electronics 1A,50-1000V Standard Rectifiers .
of changes Released Datasheet Modify document format www.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ASGP6A, ASGP1A. Please refer to the document for exact specifications by model.

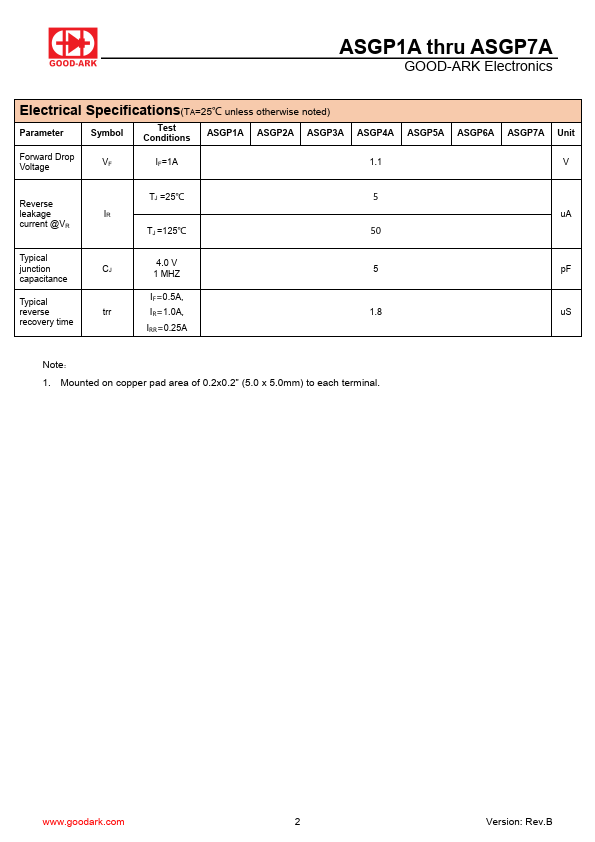

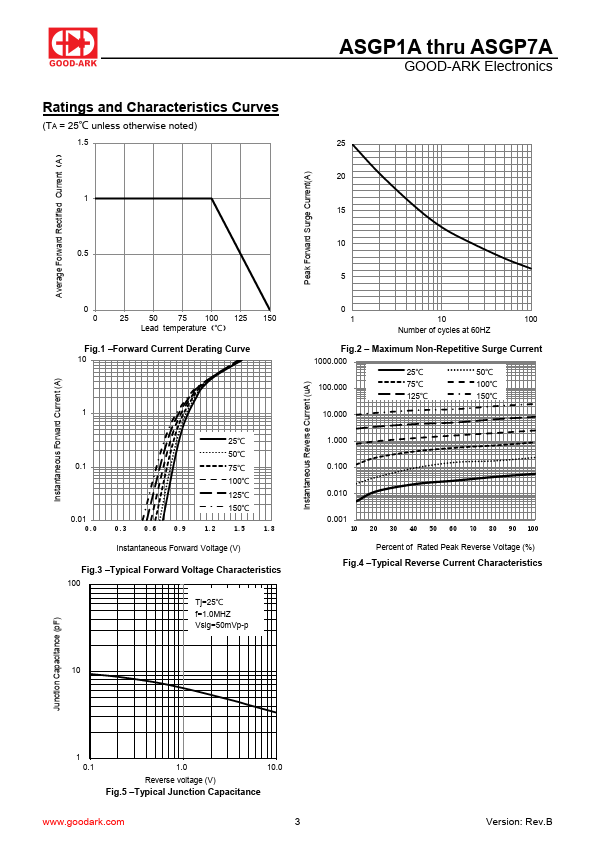

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ASGP6A, ASGP1A
Manufacturer
GOOD-ARK
File Size
489.76 KB
Datasheet
ASGP1A-GOODARK.pdf
Description
1A Standard Rectifiers
Note
This datasheet PDF includes multiple part numbers: ASGP6A, ASGP1A.
Please refer to the document for exact specifications by model.

Features

* Low leakage current
* Low forward voltage drop
* Glass passivated chip junction
* Moisture sensitivity: level 1, per J-STD-020
* Halogen-free according to IEC 61249-2-21 definition
* High temperature soldering guaranteed: 260℃/10 seconds
* AEC-Q101 qualified Pb RoHS CO

Applications

* For use of general purpose rectification in lighting, cellular phone, portable device, power supplies and other consumer applications. Maximum Ratings & Electrical Characteristics(TA=25℃ unless otherwise noted) Parameter Symbol ASGP1A ASGP2A ASGP3A ASGP4A ASGP5A ASGP6A ASGP7A Unit Maximum repeti
