BY127 - 1A High Voltage Rectifiers

Datasheet Summary

Description

of changes Released Datasheet Modify document format www.goodark.com 4 Version: Rev.B BY127 thru BY133 GOOD-ARK Electronics Disclaimers These materials are intended as a reference to assist our customers in the selection of the Suzhou Good-Ark product best suited to the customer’s application; t

Features

  • Low leakage current.
  • Low forward voltage drop.
  • Glass passivated chip junction.
  • For general purpose.

📥 Download Datasheet

Datasheet preview – BY127

Datasheet Details

Part number BY127
Manufacturer GOOD-ARK
File Size 470.01 KB
Description 1A High Voltage Rectifiers
Datasheet download datasheet BY127 Datasheet

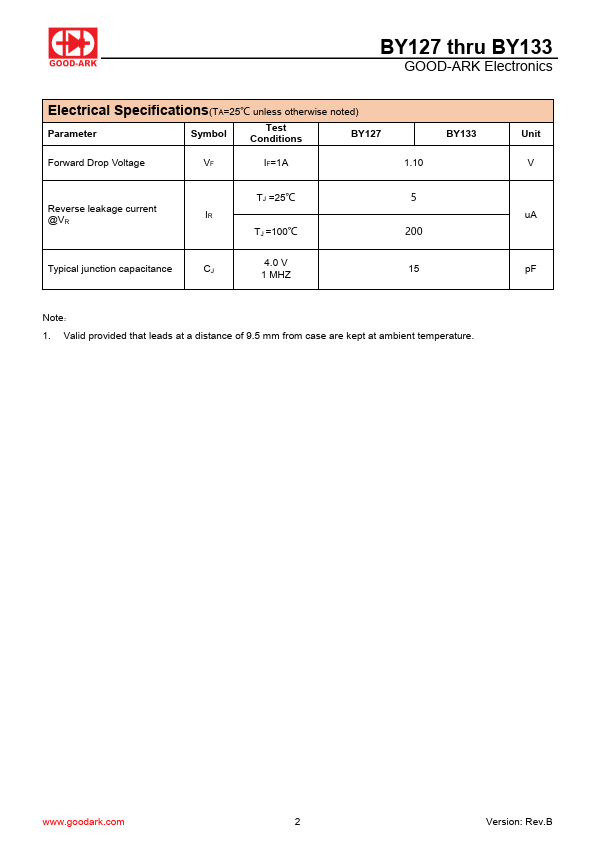

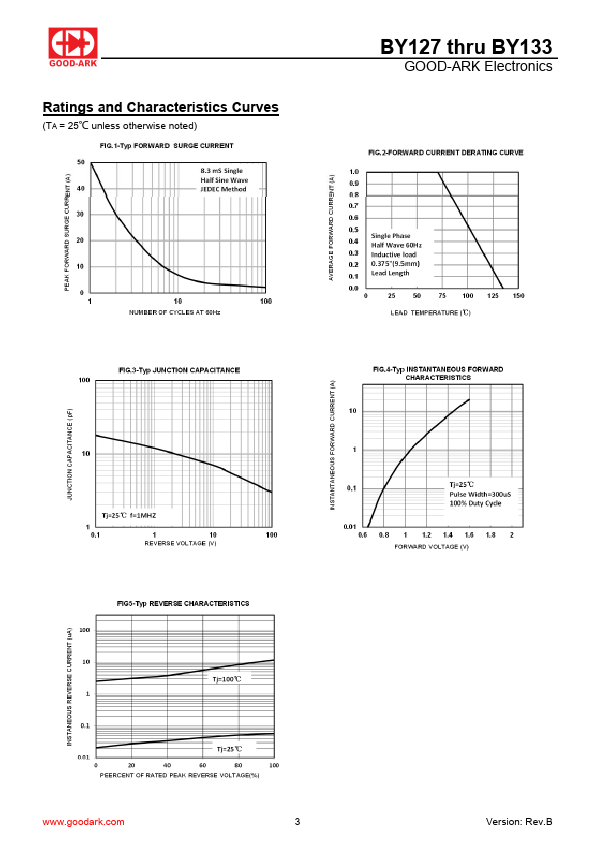

Additional preview pages of the BY127 datasheet.

📁 Similar Datasheet

  • BY127 - Sillicon Rectifier (UPM)
  • BY127 - Silicon Rectifiers (JGD)
  • BY127 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
  • BY127 - General Purpose Silicon Rectifier (Luguang Electronic)
  • BY127 - AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER (MIC)
  • BY127 - High Voltage Silicon Diode (Thinki Semiconductor)
  • BY127M - PLASTIC SILICON RECTIFIERS (PAN JIT)
  • BY127M - AXIAL LEADED SILICON RECTIFIER DIODES (SUNMATE)
  • BY127MGP - MINIATURE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (ETC)
  • BY12 - High Voltage Si-Rectifiers (Diotec Semiconductor)
Other Datasheets by GOOD-ARK
  • BY133 - 1A High Voltage Rectifiers

Full PDF Text Transcription

Click to expand full text

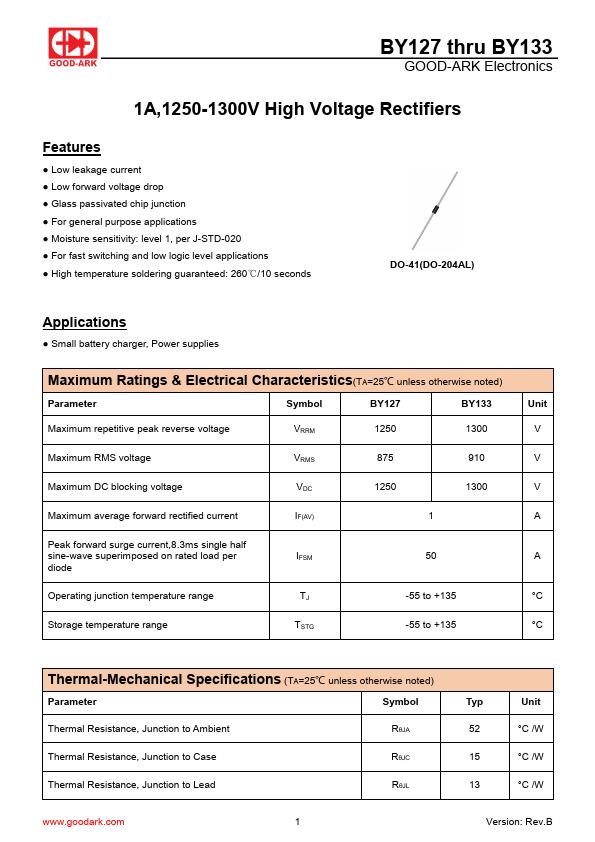

BY127 thru BY133 GOOD-ARK Electronics 1A,1250-1300V High Voltage Rectifiers Features ● Low leakage current ● Low forward voltage drop ● Glass passivated chip junction ● For general purpose applications ● Moisture sensitivity: level 1, per J-STD-020 ● For fast switching and low logic level applications ● High temperature soldering guaranteed: 260℃/10 seconds DO-41(DO-204AL) Applications ● Small battery charger, Power supplies Maximum Ratings & Electrical Characteristics(TA=25℃ unless otherwise noted) Parameter Symbol BY127 BY133 Unit Maximum repetitive peak reverse voltage VRRM 1250 1300 V Maximum RMS voltage VRMS 875 910 V Maximum DC blocking voltage VDC 1250 1300 V Maximum average forward rectified current IF(AV) 1 A Peak forward surge current,8.
