BZT52C13 - Surface Mount Zener Diodes

Product Overview

GOOD-ARK

Part number	BZT52C13
Manufacturer	GOOD-ARK
File Size	520.86 KB
Description	Surface Mount Zener Diodes
Datasheet	BZT52C13 Datasheet
Note	This datasheet PDF includes multiple part numbers: BZT52C13, BZT52C2V4-GOOD. Please refer to the document for exact specifications by model.

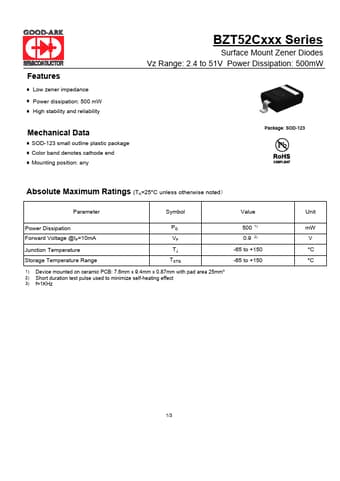

Additional preview pages of the BZT52C13 datasheet.

Low zener impedance.
Power dissipation: 500 mW.
High stability and reliability Mechanical Data.
SOD-123 small outline plastic package.
Color band denotes cathode end.
Mounting position: any BZT52Cxxx Series Surface Mount Zener Diodes Vz Range: 2.4 to 51V Power Dissipation: 500mW Package: SOD-123 Absolute Maximum Ratings (TA=25°C unless otherwise noted） Parameter Symbol Value Power Dissipation Forward Voltage @IF=10mA Junction Temperature Storage Temperature R.
