DF1502S, DF15005S-GOOD Miniature Glass Passivated Single-Phase Bridge Rectifier

DF1502S Description

DF150005S Thru DF1510S Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers Reverse Voltage 50 to 1000V Forward Current 1.5 A Feat.

DF1502S Features

* Ideal for printed circuit boards
* Applicable for automative insertion
* High surge current capability
* Solder Dip 260°C, 40 seconds Mechanical Data
* Case: DFS
* Epoxy meets UL-94V-0 Flammability rating
* Terminals: Matte tin plated (E3 Suffix) leads, solderable per

DF1502S Applications

* General purpose use in AC-to-DC bridge full wave rectifications for SMPS, lighting ballasters, adapters, battery chargers, home appliances, office equipment and telecommunication applications. Schematic Diagram Maximum Ratings & Electrical Characteristics (TA=25°C unless otherwise noted) Paramet

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF1502S, DF15005S-GOOD. Please refer to the document for exact specifications by model.

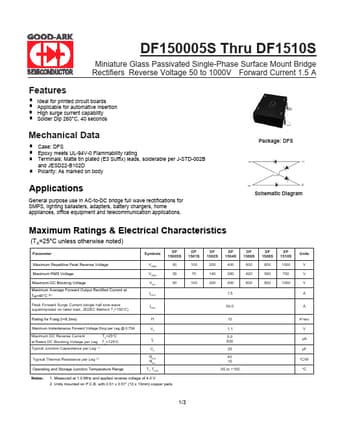

datasheet Preview Page 2 datasheet Preview Page 3
