GBJL15JA, GBJL15JA-GOOD - Glass Passivated Single-Phase Bridge Rectifier

GOOD-ARK

📥 Download Datasheet

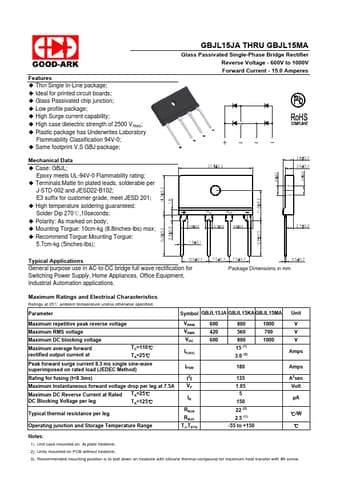

GBJL15JA Datasheet Preview — This datasheet PDF includes multiple part numbers: GBJL15JA, GBJL15JA-GOOD. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number: GBJL15JA, GBJL15JA-GOOD
Manufacturer: GOOD-ARK
File Size: 188.83 KB
Datasheet: GBJL15JA-GOOD-ARK.pdf
Description: Glass Passivated Single-Phase Bridge Rectifier
Note: This datasheet PDF includes multiple part numbers: GBJL15JA, GBJL15JA-GOOD.
Please refer to the document for exact specifications by model.

GBJL15JA Product details

Features

Thin Single In-Line package;.
Ideal for printed circuit boards;.
Glass Passivated chip junction;.
Low profile package;.
High Surge current capability;.
High case dielectric strength of 2500 VRMS;.
Plastic package has Underwrites Laboratory Flammability Classification 94V-0;.
Same footprint V. S GBJ package; Mechanical Data.
Case: GBJL; Epoxy meets UL-94V-0 Flammability rating;.
Terminals:Matte tin plated leads, solderable per J-STD-002 and JESD22.
