GL2508-T2, GL2506-T2-GOOD - Glass Passivated Bridge Rectifiers

GOOD-ARK

📥 Download Datasheet

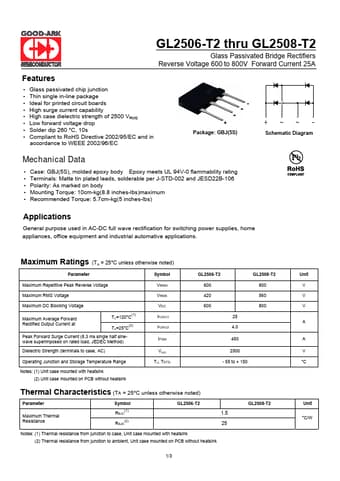

GL2508-T2 Datasheet Preview — This datasheet PDF includes multiple part numbers: GL2508-T2, GL2506-T2-GOOD. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GL2508-T2, GL2506-T2-GOOD
Manufacturer	GOOD-ARK
File Size	499.63 KB
Description	Glass Passivated Bridge Rectifiers
Datasheet	GL2506-T2-GOOD-ARK.pdf
Note	This datasheet PDF includes multiple part numbers: GL2508-T2, GL2506-T2-GOOD. Please refer to the document for exact specifications by model.

GL2508-T2 Product details

Features

Glass passivated chip junction.
Thin single in-line package.
Ideal for printed circuit boards.
High surge current capability.
High case dielectric strength of 2500 VRMS.
Low forward voltage drop.
Solder dip 260 °C, 10s.
Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC ~ ~ + Package: GBJ(5S) Schematic Diagram Mechanical Data.
Case: GBJ(5S), molded epoxy body Epoxy meets UL 94V-0 flammab.
