MB6SHF, MB6SHF-GOOD - Glass Passivated Bridge Rectifiers

MB6SHF Description

MB2SHF thru MB12SHF Glass Passivated Bridge Rectifiers Reverse Voltage 200 to 1200V Forward Current 0.5A .

MB6SHF Features

* Glass passivated bridge rectifiers
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Low forward voltage drop
* High temperature soldering guaranteed:260°C/10 seconds Mechanical Data
* Case:Molded plastic body over passivated junctions
* Term

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MB6SHF, MB6SHF-GOOD. Please refer to the document for exact specifications by model.

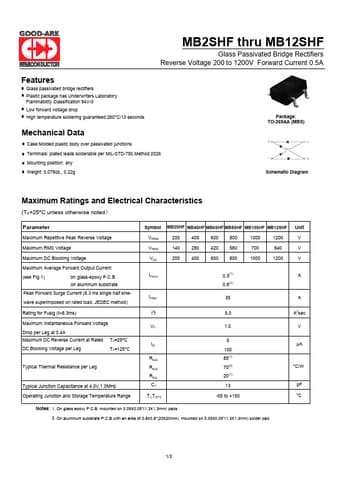

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MB6SHF, MB6SHF-GOOD
Manufacturer
GOOD-ARK
File Size
866.68 KB
Datasheet
MB6SHF-GOOD-ARK.pdf
Description
Glass Passivated Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: MB6SHF, MB6SHF-GOOD.
Please refer to the document for exact specifications by model.
