MBRF1545, MBR1545-GOOD - Schottky Barrier Rectifier

MBRF1545 Description

MBR1545/MBRF1545 Schottky Barrier Rectifier Reverse Voltage 45 V Forward Current 15 A .

MBRF1545 Features

* Plastic package has underwriters Laboratory Flammability Classification 94V-0
* Dual rectifier construction, positive center tap
* Low forward voltage, high efficiency
* Guarding for over voltage protection MBR1545 Package: TO-220-AC Mechanical Data
* Case: epoxy, molde

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF1545, MBR1545-GOOD. Please refer to the document for exact specifications by model.

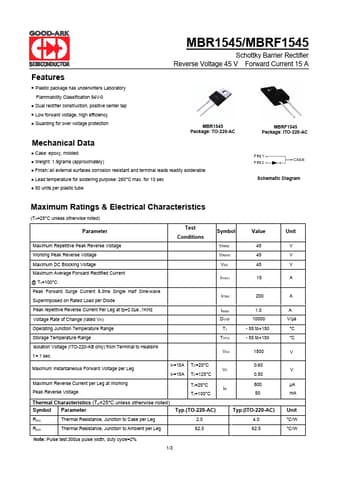

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF1545, MBR1545-GOOD
Manufacturer
GOOD-ARK
File Size
0.98 MB
Datasheet
MBR1545-GOOD-ARK.pdf
Description
Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: MBRF1545, MBR1545-GOOD.
Please refer to the document for exact specifications by model.
