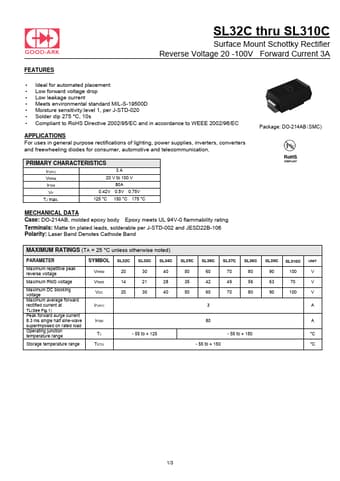

SL38C
FEATURES
- Ideal for automated placement
- Low forward voltage drop
- Low leakage current
- Meets environmental standard MIL-S-19500D
- Moisture sensitivity:level 1, per J-STD-020
- Solder dip 275 °C, 10s
- pliant to Ro HS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
APPLICATIONS
For uses in general purpose rectifications of lighting, power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telemunication.
PRIMARY CHARACTERISTICS
IF(AV) VRRM IFSM
VF TJ max.
3A 20 V to 100 V
80A 0.42V 0.5V 0.75V 125 °C 150 °C 175 °C
MECHANICAL DATA
Case: DO-214AB, molded epoxy body Epoxy meets UL 94V-0 flammability rating
Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22B-106 Polarity: Laser Band Denotes Cathode Band
Package: DO-214AB(SMC)
MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage Maximum average forward rectified current...
