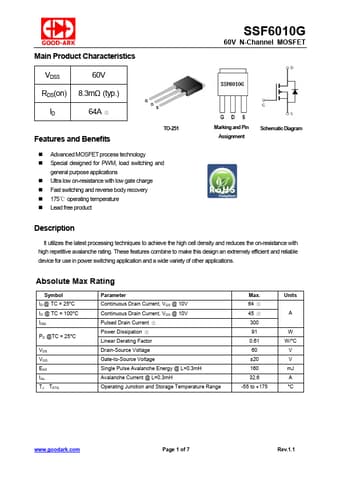

SSF6010G
Features and Benefits
TO-251
- Advanced MOSFET process technology
- Special designed for PWM, load switching and general purpose applications
- Ultra low on-resistance with low gate charge
- Fast switching and reverse body recovery
- 175℃ operating temperature
- Lead free product
60V N-Channel MOSFET
Marking and Pin Assignment
Schematic Diagram
Description
It utilizes the latest processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rating. These features bine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.
Absolute Max Rating
Symbol ID @ TC = 25°C ID @ TC = 100°C IDM
PD @TC = 25°C
VDS VGS EAS IAs TJ TSTG
Parameter Continuous Drain Current, VGS @ 10V Continuous Drain Current, VGS @ 10V Pulsed Drain Current ② Power Dissipation ③ Linear Derating Factor Drain-Source Voltage Gate-to-Source Voltage Single Pulse...
